Medical Parts Rapid Prototyping Custom Rubber Vacuum Casting
CNC Machining or Not: Cnc Machining
Type: Broaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
Material Capabilities: Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, stainless steel, Steel Alloys, plastic
Micro Machining or Not: Micro Machining
Description

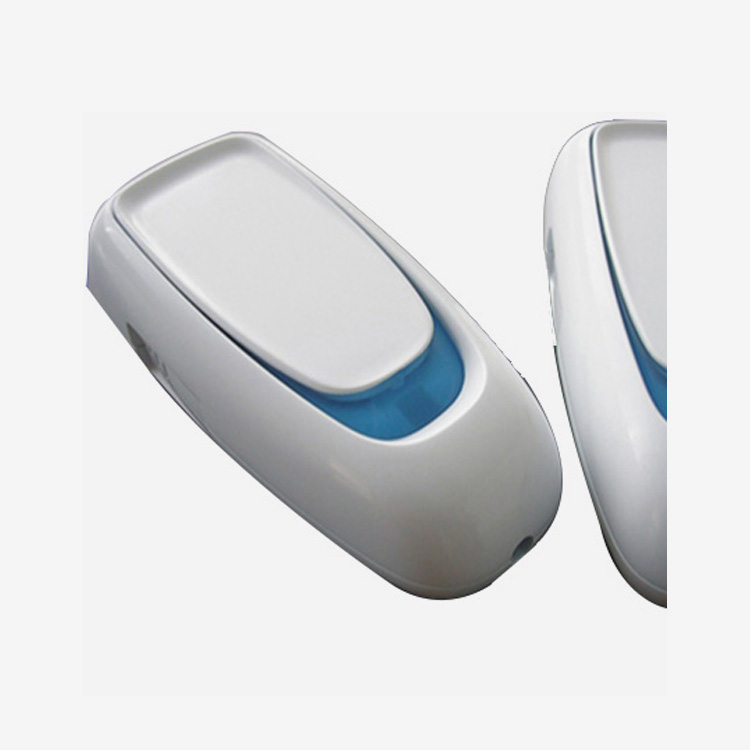

Polyurethane vacuum casting is a great way to make quick-turnaround rapid prototypes. Solid master patterns are used to cast soft silicone rubber molds, and these molds yield up to twenty copies of the original with excellent surface finishes and only a minimal investment in raw materials.
There is also another advantage to vacuum casting that many people don’t know about. We’re one of the few companies that also offer overmolding on vacuum cast parts, which means combining two or more different resins, in separate steps, to make a single finished piece.
| Material | Stainless Steel,Aluminum, Brass, Bronze, Brass, Steel Alloys, Carbon steel, Chrome steel, Cold rolled sheet, Bearing steel, Chrome copper, Mold steel, Plastic, etc. |
| Surface Treatment | Plating (Zinc Plating, Nickel Plating, ChromePlating, etc), Sandblasting, Anodized with different color (Clear Anodized, Black ANodized, etc), Brushing, Polishing, Passivation, Powder Coating, Satin, polishing, Etching, Phosphating, Electrophoresis ect. |
| Tolerance | +/-0.005mm for metal parts, 0.1mm for plastic parts |
| Surface Roughness | Ra 0.8-3.2 |
| Size | As drawing |
| Application | Automotive, Automation, Test systems, Sensors, Medical, Sports,Consumer, Home appliance, Electronic , Pumps, Computers, Power and energy, Architecture, Printing, Food, Textile machinery, Optical, Lighting, Security and safety, AOI, SMT equipment, etc. |
| Package | Inner packaging: PP bag, bubble bag, plastic wrap, foam etc. Outer packaging: Strong carbon box, wooden case, pallet etc. |
| MOQ | 1pcs, small order is welcome |
| Lead time | 3-5 days for sample; 15-25 for large order |
Tolerances
● The finished dimensions of vacuum cast parts will lie on the accuracy of the master pattern, the geometry of the part, and polyurethane material. As a rule, a shrinkage rate is expected to be + 0.15%.
● Materials
● Hundreds of casting polymers are commercially available to reproduce any conceivable hardness and surface texture. It is also possible to make parts that are fully opaque, translucent or completely transparent depending on your application.
